TecView™ BT is a true Windows® based software designed for non-destructive Bond Testing inspections, from data Acquisition to data Analysis. It is designed for inspection of bond quality of aerospace composite materials. With its intuitive interface, the TecView BT automates the process of bond testing. It records the output signal of a bond testing instrument and provides C-Scan imaging capabilities, which would allow more intuitive and accurate analysis possibilities in terms of defect detection, sizing and positioning. C-Scan imaging can provide useful additional data that can complement the results of specialized non-destructive bond testing. In addition, C-scan imaging provides an intuitive representation of the inspection data that allows recognizing geometrical patterns within multiple readings.
TecView™ BT automates the process of bond testing !
Performs resonance and mechanical impedance analysis
TecView BT ACQUISITION

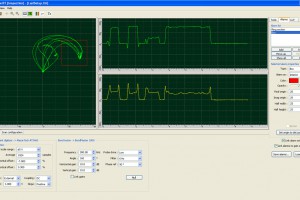

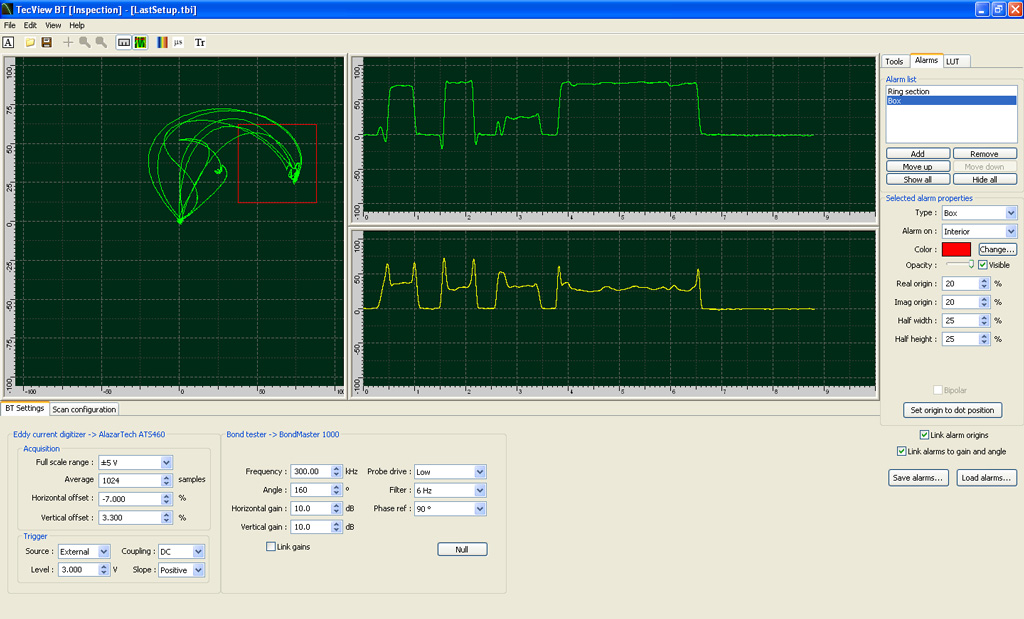

TecView™ BT ACQUISITION is designed to handle the whole inspection process and could perform resonance and mechanical impedance analysis. This Module aids the user in the setup of all scanning parameters and includes an impedance plot section where different types of alarms can be set at once. Once all the parameters are set and the scan is started, the C-Scan, impedance plot and triggered alarms are displayed in Real-Time. A side ruler can be displayed in either Metric or Imperial systems on all data displays.

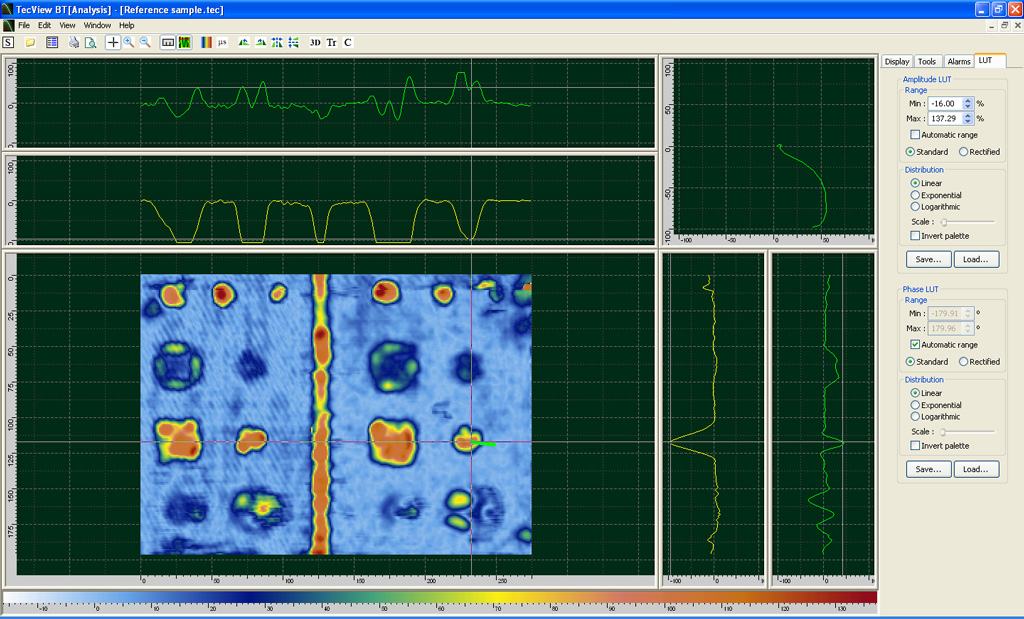

TecView BT Analysis

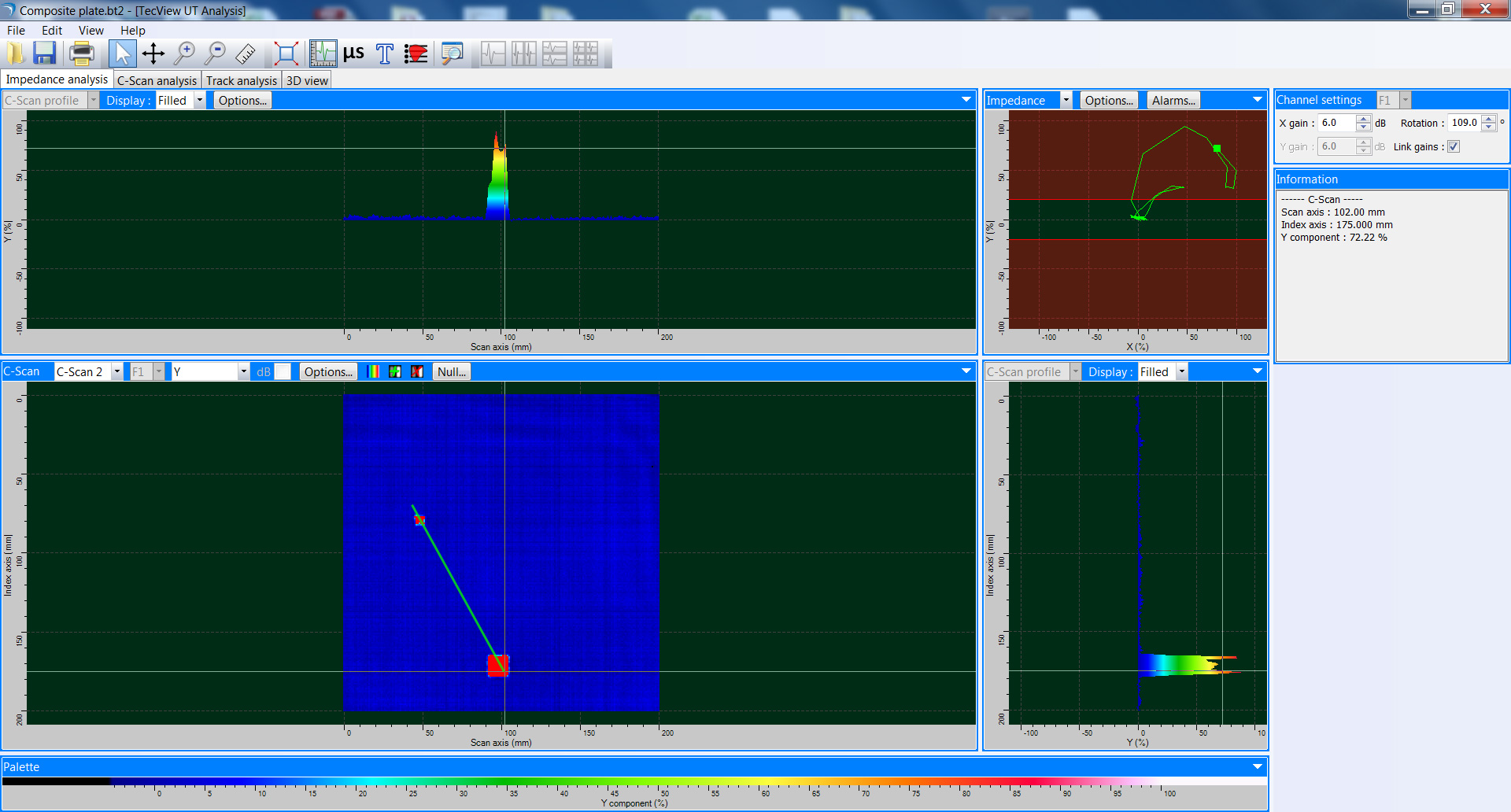

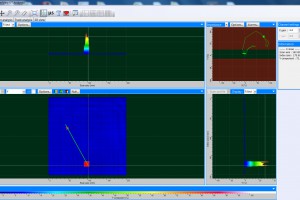

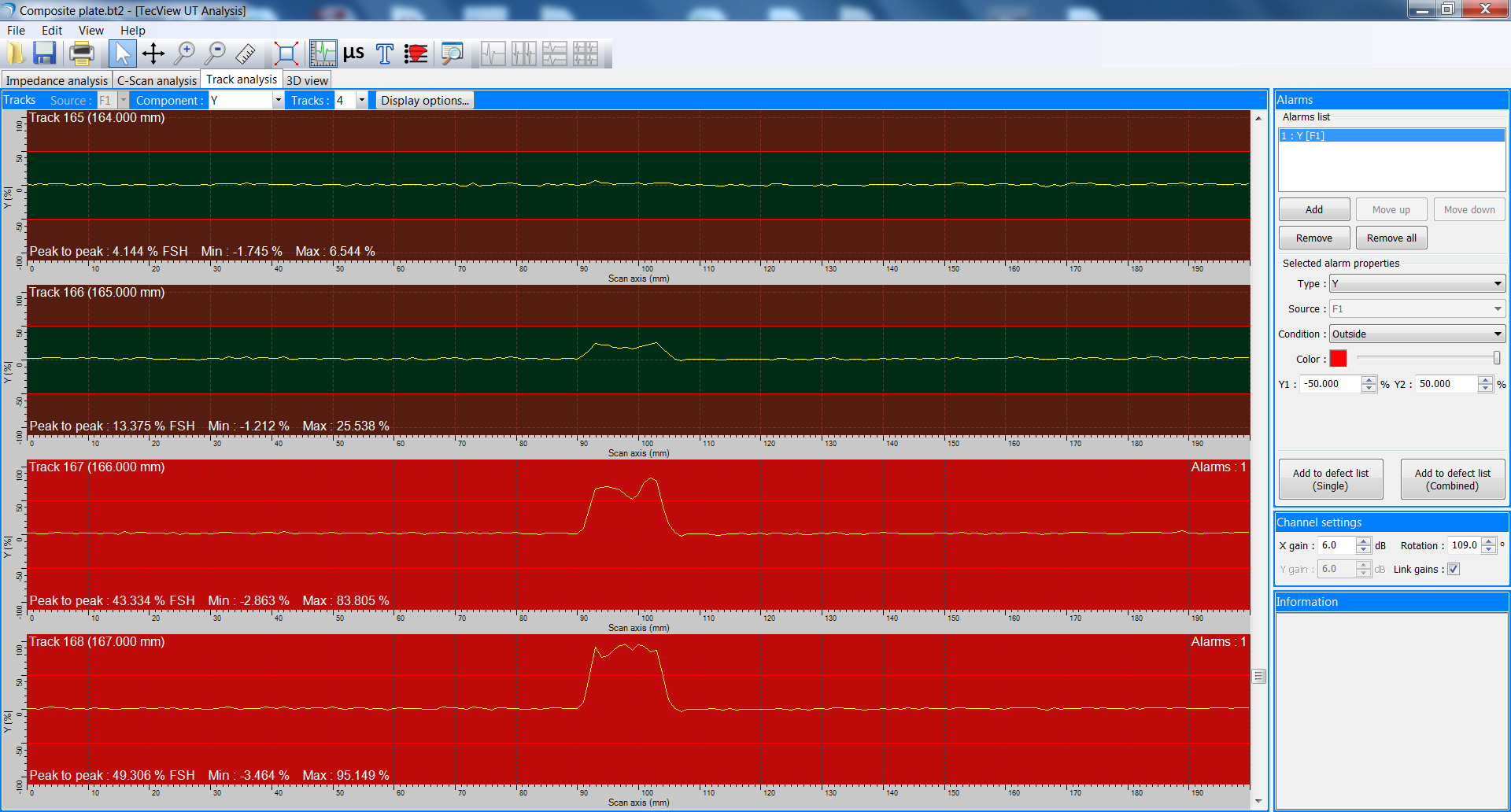

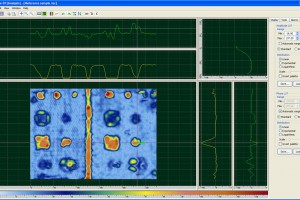

The Analysis module enables the user to analyze the Bond Testing Data once it is tagged and stored. Various C-Scan representations can be displayed based on different amplitude and phase combinations. TecView™ BT makes it easy to display relevant Impedance plots and triggered alarms by the simple movement of the cursor along a C-Scan section
- Imaging and Analysis module
- Real-time impedance and C-Scan display
- Resonance and MIA modes
- Live Alarms utilities
- Post-processing re-nulling and rotations

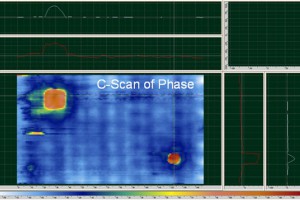

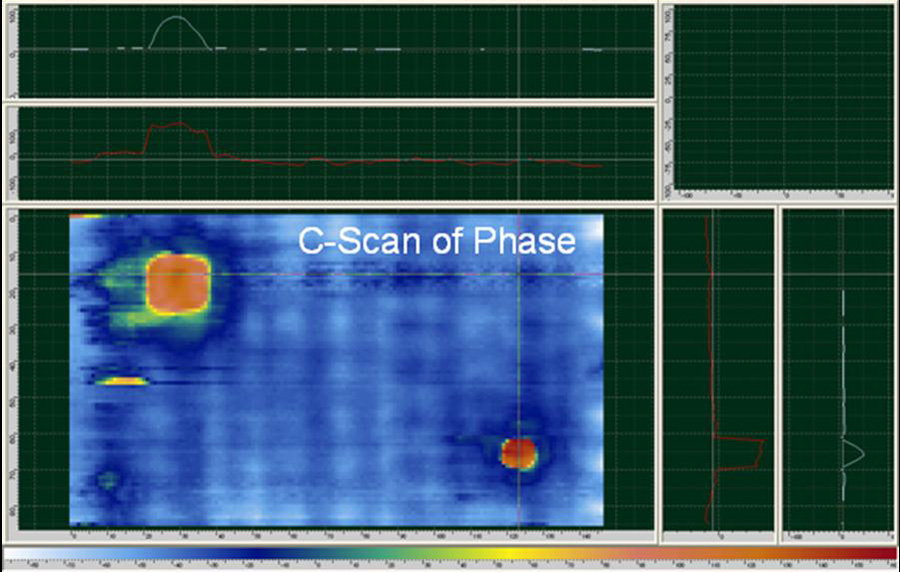

- Impedance components C-Scan imaging (amplitude, phase, etc.)

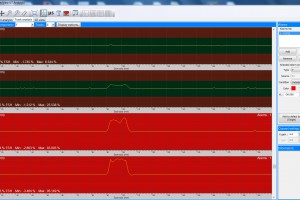

- Alarm based C-Scan imaging
- 3D projection for better illustration of defects
- Reporting capabilities
- Intuitive user-interface & menu

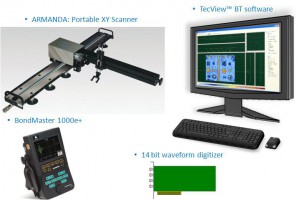

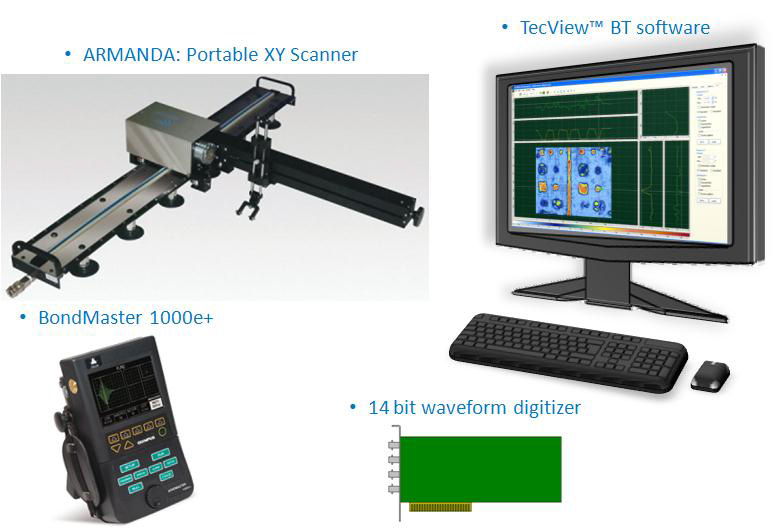

The automated bond testing solution consists of Automated Scanner, TecView™ BT, PC workstation & bond testing instrument
Typical Scanner Specifications
|Scan Resolution||0.0005″/Step (0.0127mm/Step)|
|Index Resolution||0.005″/Index (0.127mm/Index)|
(X & Y Axes)
|Minimum Curvature Radius||14″ (350mm)|
TecView™ BT specifications
* the scanner includes all motor drives and required electronic components, wiring and cables.
- Industrial rugged laptop
- 2 Channels, 12/14 bit High Speed Digitizer
Bond Testers compatibility
- BondMaster from Olympus
- Bondascope 3100
- Bond testers from other Manufacturer
*These specifications may vary according to clients requirements.
