TecViewTM 3D
TecView™ 3D is a NDT software featuring basic and advanced contour following capabilities. This software is designed to perform inspection of curved structure while keeping constant orientation and separation of the probe with regards to the structure. The basic contour following capabilities of TecView™ 3D is perfectly suited for extruded parts or similar structures, while the advanced 3D scanning is designed to permit automated inspection of more complex parts with a complete tridimensional surface following.
One of the most advanced data acquisition software !
Designed for real-time automated ultrasonic inspections of complex parts.
TecView™ 3D

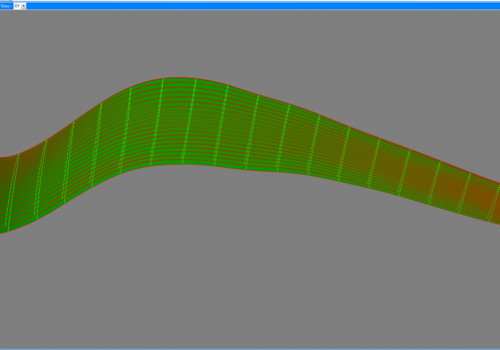

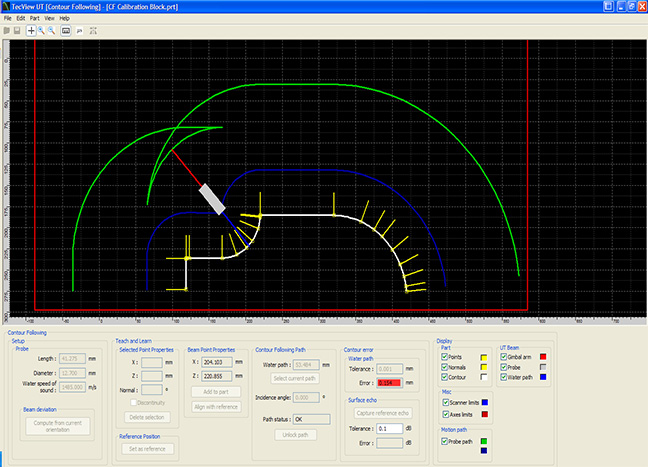

Contour following begins with the activity to interactively “teach” the geometry of the tested specimen TecView™ software. The teaching method is quick and efficient, particularly for parts with smooth curvatures. A mesh of the part is then defined in order to ensure constant scanning resolution during the scan. The system therefore “learns” how to perform the inspection based on the taught geometry. This method assures full inspection of the entire part with complex geometries. Part definitions obtained during the teaching process can be further recalled to inspect identical pieces, or refined for similar parts.

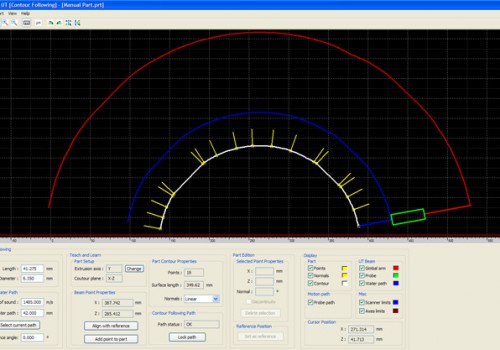

Contour Following

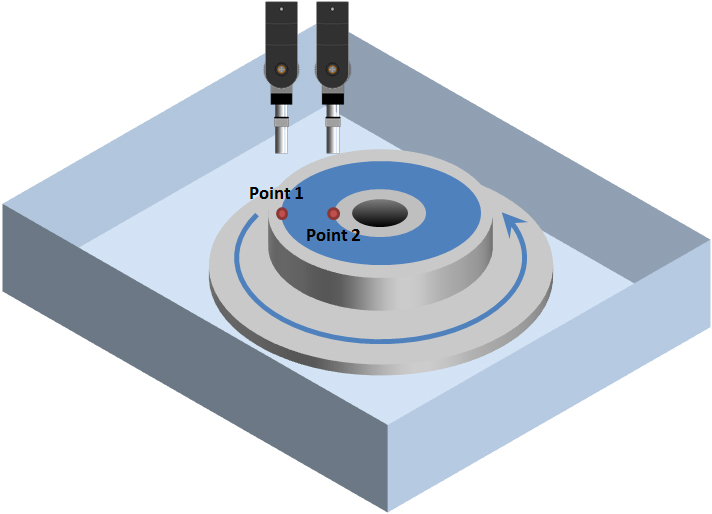

Basic contour following means that TecView™ can automatically scan extruded parts with simple curvature (bodies of symmetry), and then manipulate the scans using the full range of TecView™ analysis tools. Each scan pass is typically performed in a straight motion and along a single axis, while a multi-axis indexing is done at the end of each scan pass to follow the part curvature.

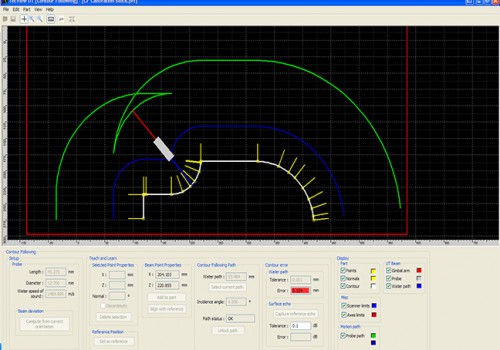

Manual Teach and Learn

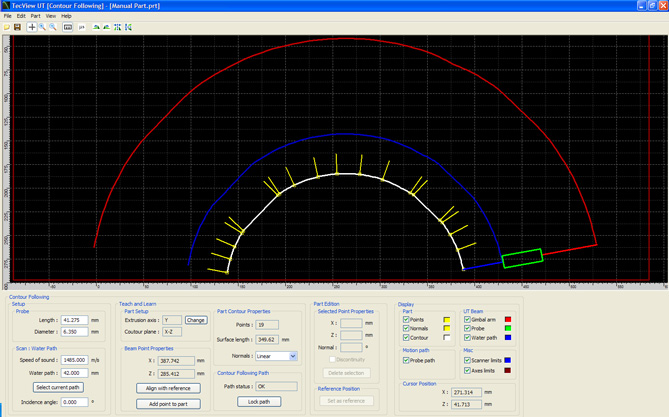

Manual teach and learn uses the part geometry data that has been “taught” with TecView ™ Teach & Learn capability. This is done by point-by-point scanning of the part using the automated ultrasonic system. This is a fast and efficient method to perform the inspection of extruded parts since only a single slice of the part needs to be defined.

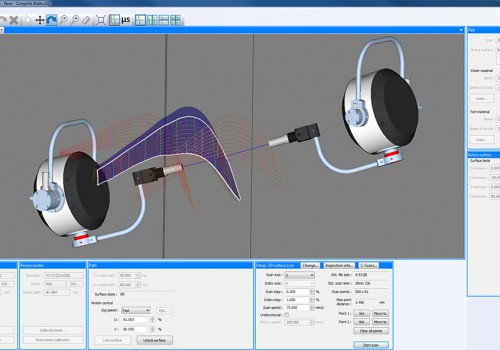

Advanced 3D Scanning
Advanced contour following allows almost arbitrary motion on any curves following the shape of the inspected test specimen. The capabilities of this feature are among the most complex and demanding in terms of mechanics, electronics, and software development efforts. This advanced contour following capability lets TecView™ inspect various shapes, such as turbine blades, fuselages and other complex aerospace structures.
Automated Teach and Learn with Mesh Input
Advanced contour following allows almost arbitrary motion on any curves following the shape of the inspected test specimen. The capabilities of this feature are among the most complex and demanding in terms of mechanics, electronics, and software development efforts. This advanced contour following capability lets TecView™ inspect various shapes, such as turbine blades, fuselages and other complex aerospace structures.
Software Features:
|
|
Software important specifications:
|
|
