    INSPECT YOUR 3D PARTS WITH SCAN3D

    High Precision 3D Immersion Scanners which revolutionizes the ultrasonic scanning process.Fully automated for testing of complex aerospace composite structures & engine components.Scan plans are imported from 3D CAD files & scans are performed simultaneously in TT & PE

    Highlighted Features:

    Contour-following 2.5D & 3D
    Interactive tools for part entry
    Part creation from CAD files
    3D display of C-Scans
  • TecScan Slider - Automated Scanners

    PORTABLE AUTOMATED SCANNERS

    Automated X-Y scanner for Ultrasonic, Eddy Current, Pulsed Eddy Current and TOFD inspections.Equipped with a spring loaded Z-axis designed to provide rapid and accurate transducer positioning.It can perform horizontal & vertical scans and contoured or edged surfaces.

    Highlighted Features:

    Fully integrated NDT solution
    Portable C-Scan scanner
    On and Off-line data analysis
    Combines UT & ET inspections
  • Industrial Immersion Scanners

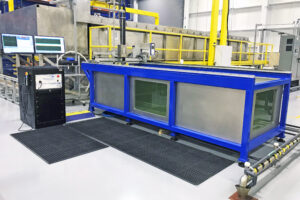

    INDUSTRIAL IMMERSION SCANNER

    Ultrasonic Immersion Scanner designed to meet and exceed the inspection requirements.Rapid coverage of large areas, inspection of flat and complex geometries such as composites.Turnkey solution with multichannel Ultrasonic system or a Phased Array instrument

    Highlighted Features:

    Inspection coverage up to 40 m²/h with Phased Array
    Inspections using multiple focalization schemes
    On and Off-line data analysis
    Uses the proven TecView™ UT software suite
  • TecView

    SEE IT IN 3D WITH TECVIEW!

    TecView 3D is a NDT software featuring basic and advanced contour following capabilities.Perfectly suited to perform 2.5 & 3D inspection of complex & extruded parts.Advanced 3D scanning designed to perform inspection of more complex parts

    Highlighted Features:

    Easy manual Teach & Learn
    Automated Teach and Learn with Mesh Input
    Part geometry extraction from CAD drawings
    Scanner movement animation
  • NDT Instruments

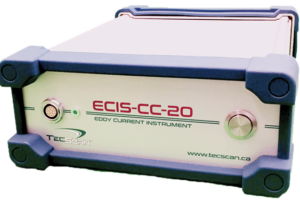

    NDT INSTRUMENTS

    High-End NDT instruments designed for advanced and demanding scanning application. Delivered as part of a system or standalone equipment piloted by an easy-to-use TecView™ application.

    Highlighted Features:

    USB computer controllable
    High performance USB 2.0 & 3.0
    Fully supported by TecView™ suite
    Data acquisition, display and analysis ready
  • Eddy Current Bearing Scanners

    EDDY CURRENT BEARING SCANNERS

    Automated Eddy Current Bearing Scanners for Aircraft Engines & Helicopter Transmission components such as Ball Bearing Raceways, Roller Bearings Raceways & Inner Grooves.

    Highlighted Features:

    4-axis system (X, Z, Gimbal, Turntable)
    Inspection of Aircraft Bearings up to 36” in diameter
    Turnkey System & adapted for the repetitive scans of identical parts
    TecView™ EC software package specifically designed for bearing inspections
  • Gantry Systems

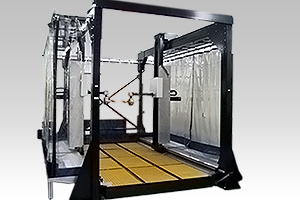

    SQUIRTER GANTRY SYSTEM

    Ultrasonic Squirter Gantry system with up to 12 independent axes designed for nondestructive quality testing and inspection of large structures including Complex Composite Aerospace Parts.

    Highlighted Features:

    Accommodates up to 12 independent axes
    Contains high quality servomotors
    Equipped with water metering and filtering equipment
    TecView™ UT software for Data Acquisition & Analysis Modules

Featured Products

Fan Blade Inspection

Checkout our new article published in the December, 2012 issue of ASNT – NDTMarketplace: The American Society for Non-destructive Testing. 3D Ultrasonic Testing Solution for Aircraft Composite Fan Blades



Train axle Scanner

TecScan is proud to introduce a train axle inspection solution combining a manual axle scanner with phased array technology. The scanner performs a full 360° rotation of the phased array probe around the axle axis. Making use of the multi-angle …



Nondestructive Testing Solutions from TecScan

Innovative Nondestructive Testing, Ultrasonic Imaging & Motion Control Solutions

We provide nondestructive testing (NDT) Scanners, Immersion C-Scan Imaging Systems for MRO (Maintenance, Repair, and Overhaul) of aircraft systems and components, aerospace structures, power generation and industrial applications. Ultrasonic Testing, Phased Arrays, Time-Of-Flight-Diffraction (TOFD), Eddy Current and Pulsed Eddy Current technologies. Our products range from small hand-held NDT scanners to large automated in-line inspection systems and from ultrasonic immersion tanks to large squirter gantry systems. We offer Ultrasonic Immersion Scanners, Ultrasonic Squirter/Gantry Systems, Table-Top Scanners, Eddy current Bearing Inspection Systems, Integrated Inspection Systems, Automated Portable Scanners, and Manual Inspection Scanners.

We focus on the military and civilian aerospace sector for corrosion, disbonds or cracks detection in Turbofans,Composite Fan Blade Inspection, Aircraft Components Testing, Composite Skin Structure Testing, Carbon/epoxy skin & aluminum honeycomb composites, Composite Adhesive‐bonded Component Inspection, Aircraft Multi‐Layered Aluminum Structures Inspection, corrosion, disbonds or cracks, customized nondestructive testing solutions and scanners are also available, and are designed to meet the client’s specific needs.

We also offer a wide selection of NDT software programs, NDT pulser/receiver instruments and accessories that can increase the productivity of your NDT scanning systems. Gimbal/Gimbal & Swivel/Gimbal assemblies, Turn-Tables and Bar Stock Indexers.  For cost effectiveness, we could retrofit your existing NDT systems and update your workstation control equipment.

News & Headlines

TECSCAN'S SIDE-ARMS GANTRY SYSTEM: POWERFUL SOLUTION DESIGNED TO EVALUATE LARGE AEROSPACE COMPOSITE STRUCTURES AND TO PERFORM COMPLEX 3D C-SCANS

  TecScan introduces a new Squirter Gantry system with two side-arms configuration which is specially designed to perform 3D scanning of complex composite and metallic structures. The Gantry System is composed of an industrial mechanical scanner and a control workstation. …

Continue Reading

Scan3D™: 3D ULTRASONIC SCANNER

TecScan is proud to introduce Scan3D™, a family of High Precision Immersion Scanners. Scan3D™ revolutionizes the ultrasonic scanning process. The system includes industrial immersion tank,Gimbal/Gimbal assembly and TecView™3D.   When inspecting complex 3D parts whether in immersion or squirter configuration, advanced …

Continue Reading

Must Watch

Ultrasonic Immersion Scanners

Advanced ultrasonic immersion scanner for inspection of various range of turbine blades for power generation and aerospace components. The scanner uses focused immersion transducers to perform nondestructive ultrasonic inspection. When inspecting blades in order to ensure their optimum strength, the scanner could measure the wall thickness deviation from machining, detect inner cracks and verify for any surface defects.


Downloads & Articles

Feel Free to Checkout our Download Section

Our download section contains various articles and videos about our products solutions and software. This is the best place for you to get an eloborated versions of all our product, software and solution catalogs.
